Vacuum Brazed Precision Tooling · Hard Material Drilling
THIN KERF DIAMOND HOLESAWS PRECISION CORING ZERO TILE CHIPPING
Engineered for industrial buyers and trade contractors. Our ultra-thin kerf vacuum-brazed diamond holesaws deliver up to 60% faster penetration through Grade 5 porcelain, Dekton, quartz, and marble while maximizing battery life per charge.
Engineering Analysis & Kinematics
Why Thin Kerf Engineering Matters for Hard Porcelain and Sintered Materials
Modern architectural surfaces—ranging from 20mm ultra-dense porcelain pavers to sintered quartz slabs like Dekton and Neolith—present extreme Mohs hardness ratings (typically 7 to 8.5). Traditional thick-wall diamond hole cutters experience high thermal expansion, excessive material friction, and high power resistance, leading to slow drilling speeds and micro-cracking at the substrate edge.
Thin kerf diamond holesaws solve this problem through material reduction physics. By reducing the cutting rim wall thickness (kerf width) to between 1.0mm and 1.2mm, DURO thin kerf holesaws remove less than half the substrate volume per rotation compared to standard 2.5mm segmented core bits. This drastic reduction in friction translates directly into faster penetration rates, negligible thermal shock, and a fraction of the mechanical torque requirement.
For B2B buyers and tooling distributors, procuring thin kerf diamond tooling is no longer a niche option; it is an essential engineering requirement for modern construction, MEP plumbing installations, electrical fit-outs, and stone fabrication work.
| Performance & Engineering Attribute | Standard Segmented Hole Cutter (Wall: ~2.5mm) | Electroplated Tile Bit (Wall: ~1.8mm) | DURO Thin Kerf Vacuum Brazed Holesaw (Wall: 1.0 - 1.2mm) |
|---|---|---|---|
| Material Removal Efficiency | Low – Requires heavy feed pressure | Moderate – Prone to premature grit loss | Maximum – Ultra-thin profile minimizes drag |
| Cooling Mechanism | Requires continuous flood water stream | Water spray mandatory; quick thermal burnout | Dual Option: Integrated Paraffin Wax or Water Cooling |
| Battery Impact (Holes per Charge) | Baseline (100% torque load) | +30% hole yield per battery cycle | +180% hole yield (Reduced motor strain) |
| Brazing / Bonding Integrity | Sintered bond segment – high heat tolerance | Surface electroplating – single diamond layer | Vacuum Brazed Matrix – High strength alloy bond |
| Substrate Compatibility | Concrete, soft bricks, standard masonry | Glass, ceramic tile, soft marble | Grade 5 Porcelain, Quartz, Granite, Glass, Dekton |
| Edge Finish Quality | Moderate chip risk on glazed surfaces | Clean, but slow penetration rates | Factory-Clean Edge – Zero surface blowouts |
Industrial Range Overview
DURO Thin Kerf Diamond Holesaw Product Recommendations
Engineered for high-torque cordless angle grinders, standard rotary drills, and specialized core drilling rigs. Match the right shank, cooling system, and matrix bond to your exact job site conditions.
DURO DHS Vacuum Brazed Thin Kerf Holesaw
Primary Application: Dry and wet fast coring in hard porcelain tiles, marble, granite slabs, and technical ceramics.
- Kerf Thickness: 1.1mm micro-kerf profile
- Fitting Options: M14 Thread for Angle Grinders & Hex Adapter for standard 13mm chucks
- Diameter Range: 5mm to 120mm full depth inventory
- Cooling Technology: Internal phase-change paraffin wax core (sizes 5mm - 14mm) for dry drilling without external water feeds
- Safety Certification: Audited under oSa EN 13236 compliance standards
DURO DTD Dry Porcelain Micro-Core Tile Drill
Primary Application: Rapid anchor hole creation (plumbing fixtures, bathroom accessories, electrical sockets) in dense vitreous porcelain.
- Kerf Thickness: 1.0mm ultra-thin geometry
- Speed Rating: Optimized for high-speed operation (10,000 - 14,000 RPM on angle grinders)
- Diamond Grade: Premium synthetic industrial diamond grit high-vacuum furnace bonded
- Performance Benefit: 5-second penetration per 10mm tile with crisp, clean rim entrance
- Life Expectancy: 40+ holes per bit in 12mm PEI Class 5 porcelain

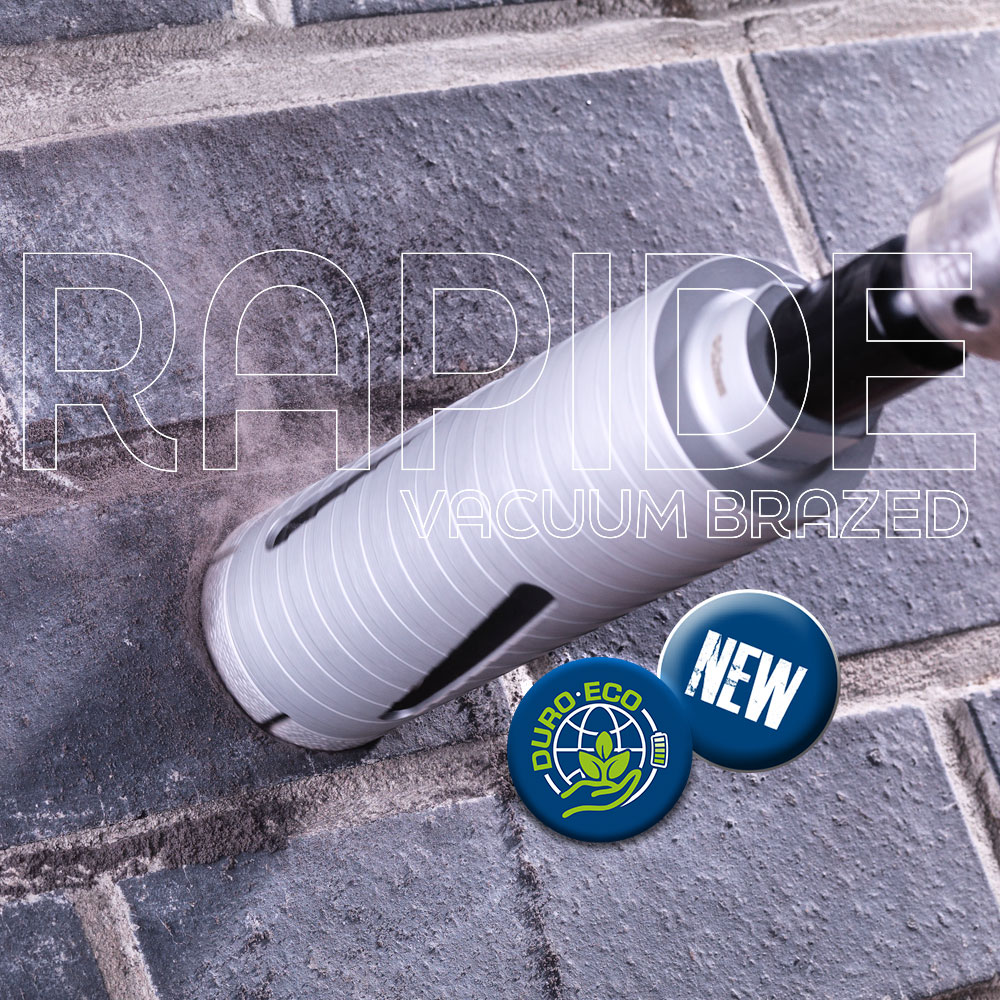

DDC-RAPIDE High-Speed Heavy-Duty Core Drill
Primary Application: Large diameter pipe penetrations through stone, brick, blockwork, and composite wall structures.
- Core Technology: Continuous vacuum-brazed crown diamond lattice
- Penetration Advantage: Up to 60% faster drilling rate over standard segmented barrel cores
- Zero Segment Loss: Eliminates braze-joint failure risk under thermal stress
- Compatibility: SDS-Plus, SDS-Max, Hex, and 1/2" BSP threaded drivers
- Vibration Control: Low rotational drag prevents hand-arm vibration syndrome (HAVS)
Engineering Integration
Silica Dust Control & Fluid-Cooled Core Drilling
While DURO thin kerf diamond holesaws feature integrated wax technology for dry drilling small diameters, large-diameter coring and high-frequency site production benefit significantly from wet drilling setups. Utilizing engineered water feed mechanisms drastically extends diamond matrix life while complying with OSHA, HSE, and international Respirable Crystalline Silica (RCS) dust regulations.
- Seamless pairing with DURO 10L–60L pressurized and battery-powered dust suppression water tanks
- Flushes micro-swarf instantly to prevent diamond slurry packing and diamond glazing
- Keeps tool barrel temperatures under 120°C to preserve steel core integrity
- Eliminates hazardous airborne silica dust clouds during indoor bathroom and kitchen fit-outs
Manufacturing Authority & Reliability
The DURO Enterprise Advantage: ISO Certified, Field Validated
For global procurement managers, OEM brand buyers, and nationwide tool distributors, partner reliability depends on consistent batch quality, documented compliance, and resilient supply chain logistics.
oSa® Safety Audited
DURO diamond tools are produced in strict compliance with oSa (Organization for the Safety of Abrasives) standards, enforcing rigorous mechanical stress tests under EN 13236 and EN 12413.
Quadruple ISO Certification
Our global operations maintain certified management systems for Quality (ISO 9001:2015), Environmental Impact (ISO 14001:2015), Occupational Health & Safety (ISO 45001:2018), and Information Security (ISO 27001).
Dual Distribution Warehouses
Equipped with deep inventory buffers across primary logistics hubs, DURO supports contract fulfillment with next-day UK dispatch and accelerated export container dispatch for international partners.
Industry Trends Analysis (2026–2030)
Future Procurement Trends in Diamond Tooling & Thin Kerf Technology
As global architectural and construction practices evolve, purchasing directors must align their tool sourcing with material advancements, power tool ergonomics, and environmental legislation.
1. Rise of Sintered Architectural Slabs
Large format porcelain sheets and sintered stone surfaces (3mm to 20mm thickness) are rapidly replacing standard ceramic tiles in commercial facades and kitchen fit-outs. Because these materials carry high internal stress, traditional impact drilling or thick-kerf cutters cause catastrophic slab fracturing. Demand for micro-kerf (1.0mm) vacuum-brazed holesaws will grow exponentially as installers require chip-free coring guarantees.
2. Cordless Tool Platform Optimization
High-voltage battery platforms (18V, 36V, and 54V/60V MAX) now dominate job sites. Contractors demand tooling that conserves battery cycles. Thin kerf diamond holesaws reduce mechanical resistance by up to 50%, allowing tradesmen to drill significantly more holes per battery charge while protecting expensive brushless tool motors from over-current thermal shutdown.
3. Transition to Vacuum-Brazing over Electroplating
Historically, thin tile bits used single-layer electroplating. Industry data shows buyers moving rapidly to high-vacuum furnace brazing. Vacuum brazing forms a metallurgical chemical bond between the nickel-chromium alloy matrix and the synthetic diamond grit, exposing 70% of the diamond particle for active cutting versus only 30% in electroplated tools. This increases working life by 3x to 5x.
4. Sustainability & Carbon Footprint Metrics
Tier-1 contractors increasingly mandate ESG transparency. DURO’s ISO 14001 certified manufacturing, recyclable packaging programs, and raw material optimization ensure B2B buyers meet strict environmental procurement guidelines without sacrificing performance or cost-per-hole economics.
Versatile Applications
Engineered for Every Hard Substrate
From high-end residential porcelain tiling to heavy municipal stone installations, DURO tooling guarantees accuracy.
Thin Kerf Diamond Holesaws
Fast, chip-free holes in Grade 5 porcelain, marble, Dekton, and glass.
Explore Range Dry Diamond Tile Drills
Internal wax cooling for rapid dry coring.
Explore Range DDC-RAPIDE Core Drills
Vacuum-brazed crowns with zero segment loss.
Explore Range
Diamond Cup Grinders
High-speed surface preparation and levelling.
Explore RangeB2B Technical FAQ
Frequently Asked Procurement & Engineering Questions
Detailed technical answers for procurement directors, product managers, and industrial tooling distributors handling thin kerf diamond holesaws.
A thin kerf diamond holesaw features a significantly narrower cutting rim profile—typically between 1.0mm and 1.2mm—compared to conventional segmented core drills which measure 2.2mm to 3.0mm in kerf width. By removing substantially less substrate material during rotation, thin kerf holesaws reduce friction and cutting resistance. This allows contractors to drill through hard vitreous materials such as Grade 5 porcelain, Dekton, and dense granite up to 60% faster, with minimal feed pressure, lower risk of tile cracking, and reduced thermal stress on the diamond bond.
Electroplated diamond tools place a single layer of synthetic diamond particles on the steel body using a nickel bath. The mechanical hold is weak, and diamonds strip away quickly when exposed to high heat or dense substrates. In contrast, DURO vacuum brazing heats high-grade synthetic diamond grains and nickel-chromium alloy matrix in a high-vacuum furnace at temperatures exceeding 1,000°C. This creates a true metallurgical fusion weld, securing each diamond grain chemically. Vacuum brazing allows up to 70% of the diamond crystal to be exposed for cutting (versus ~30% in electroplating), resulting in dramatically faster cutting speeds, superior thermal resistance, and up to 5 times longer service life.
DURO thin kerf holesaws offer versatile cooling capability. Smaller diameters (5mm up to 14mm) feature an integrated phase-change paraffin wax core. During drilling, friction melts the internal wax, lubricating the diamond crown and dissipating heat automatically for complete dry-drilling convenience on job sites. For larger sizes (16mm to 120mm), or for continuous production lines drilling thick 20mm porcelain pavers, water cooling is recommended to maximize tool longevity and preserve diamond sharpness. Water feed also suppresses respirable crystalline silica (RCS) dust to comply with site health and safety standards.
For M14-threaded thin kerf holesaws mounted on variable-speed angle grinders, optimal operating speeds range between 8,000 RPM and 11,000 RPM. High rotational speed allows the exposed vacuum-brazed diamonds to micro-chip the substrate efficiently without requiring heavy downward hand pressure. When using hex-shank adapters on standard rotary drill drivers, turn off all hammer/percussion action and maintain an RPM speed between 1,500 RPM and 3,000 RPM. Always initiate the cut at a 45-degree angle to create an initial crescent alignment groove before bringing the tool perpendicular to the tile surface.
The mechanical torque required to rotate a hole cutter is directly proportional to the surface area of the material being ground away. Because a 1.1mm thin kerf holesaw removes less than 50% of the volume of a standard core bit, the electric motor experiences drastically lower rotational drag and heat buildup. In field testing across 18V cordless platforms, operators achieved up to 180% more drilled holes per battery charge cycle when using DURO thin kerf tooling, reducing battery downtime and extending overall power tool motor lifespan.
DURO thin kerf diamond holesaws are manufactured in production facilities audited by the Organization for the Safety of Abrasives (oSa®), ensuring compliance with international safety standards EN 13236 (Safety requirements for diamond tools) and EN 12413. Furthermore, DURO Yokota Ltd maintains audited management systems certified to ISO 9001:2015 (Quality), ISO 14001:2015 (Environmental Management), ISO 45001:2018 (Occupational Health & Safety), and ISO 27001 (Information Security). These credentials guarantee complete batch traceability, structural safety, and ESG compliance for corporate procurement contracts.
While low-cost electroplated tile bits carry a lower initial purchase price, their rapid wear rate (often failing after 3 to 6 holes in hard porcelain) results in a high cost per hole (roughly $1.50 - $2.50 per hole). DURO vacuum-brazed thin kerf holesaws average 40 to 80+ holes per tool in Grade 5 porcelain when operated correctly, reducing the net consumable tool cost to less than $0.35 per hole. Furthermore, when factoring in saved labor hours (5-second cut times vs. 45-second cut times) and zero tile breakage costs on expensive slabs, commercial installers report a total ROI payback within their first major project installation.
Thin kerf diamond holesaws are specifically engineered for hard ceramic, porcelain, glass, quartz, sintered stone, and natural stone slabs. They are not intended for rebar-reinforced structural concrete or heavy steel sections. Drilling into metal reinforcement with a micro-thin kerf barrel can cause lateral distortion or tooth stripping. For heavy-duty concrete with rebar penetrations, buyers should specify DURO DDC-RAPIDE core drills or industrial segmented diamond core barrels designed for heavy structural masonry.
DURO supports industrial distributors, OEM partners, and tool hire chains with comprehensive commercial services. We offer custom diameter manufacturing, specialized shank fittings (including M14, 5/8"-11, Hex, and Quick-Change formats), retail point-of-sale display packaging, and private label branding. Wholesale buyers can request full master-catalog packaging programs backed by technical data sheets, high-resolution media assets, and counter-staff sales training provided by our regional field specialists.
Global wholesale enquiries are processed directly through our central sales desk. DURO maintains vast buffer stock across two primary logistics warehouses, ensuring next-day dispatch for standard UK stock items and standard 3-to-5 day dispatch for international air-freight orders. Container-level distribution orders are managed under ISO 9001 logistics workflows with full export documentation. Click the inquiry button below to speak directly with a dedicated DURO technical account director.
Global Wholesale & OEM Supply
Ready to Elevate Your Tooling Line with Thin Kerf Innovation?
Partner with DURO Yokota Ltd for ISO-certified quality, oSa-audited safety, and field-proven diamond tooling performance. Speak to our technical engineering team today.
