Engineered for extreme material penetration, longevity, and structural safety across heavy construction, masonry, granite, and rail applications.
Selecting a top-tier core bit supplier from China requires an understanding of diamond tool metallurgy. The performance, lifetime linear meter yield, and rate of penetration (ROP) of a core drill bit are dictated by the interplay between the synthetic diamond crystal grade (typically high-purity cubooctahedral diamonds), diamond grit size distribution (20/30 to 40/50 mesh), and the sintered metal powder matrix holding the diamond particles in place.
China's premier core bit manufacturers have transitioned from primitive cold-press sintering methods to sophisticated hot-press vacuum sintering and full-automation laser welding lines. This technological evolution guarantees zero segment drop, exceptionally high shear resistance at the weld joint (exceeding EN 13236 safety standards), and precise thermal management during dry and wet core drilling operations.
Direct laser beam fusion welds diamond segments directly to the steel barrel, creating a structural alloy bond capable of withstanding temperatures up to 800°C during dry cutting.

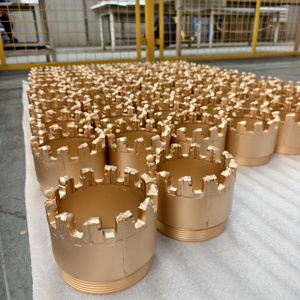

Polycrystalline Diamond Compact (PDC) cutters combined with active nickel-titanium braze filler metal provide ultra-sharp shear cutting action ideal for soft to medium-hard rock formations.
Matrix hardness is calibrated to the substrate: soft bronze/cobalt matrices for hard aggregates like granite, and tough iron/tungsten matrices for abrasive green concrete and asphalt.
When evaluating a China Best Core Bit Supplier & Suppliers, professional buyers must look beyond initial unit costs and evaluate total total cost of ownership (TCO) per linear meter drilled. Premium Chinese core bits incorporate controlled diamond exposure technology (where diamonds are micro-structured into uniform patterns across the segment), delivering up to 60% faster penetration rates and lowering machine motor strain on handheld and rig-mounted core drills.
Matching the core bit segment bond to material hardness and abrasiveness is critical to preventing segment glazing (polishing over) or premature diamond wear.
| Substrate Category | Material Examples | Recommended Bond System | Diamond Grit & Conc. | Welding Method |
|---|---|---|---|---|
| Extremely Hard / Non-Abrasive | Granite, Quartzite, Hard Flint Concrete | Soft Bond (Cobalt-Bronze rich matrix) | 40/50 Mesh | High Concentration | Laser Welded / Silver Brazed |
| Hard / Medium Abrasive | Heavy Reinforced Concrete, Engineering Brick | Medium-Soft Bond (Cobalt-Iron alloy) | 35/45 Mesh | Medium-High Conc. | Laser Welded |
| Medium Hard / Abrasive | Standard Concrete, Cured Blockwork, Hard Freestone | Medium Bond (Iron-Nickel base) | 30/40 Mesh | Standard Conc. | Laser Welded / Frequency Brazed |
| Soft / Highly Abrasive | Green Concrete, Asphalt, Sandstone, Render | Hard Bond (Tungsten Carbide reinforced) | 25/35 Mesh | Medium Conc. | Laser Welded |
| Specialized Substrates | Porcelain Tile, Marble, Glass, Railway Steel | Vacuum Brazed / PDC Cutter rim | Direct Brazed Layer / PDC Insert | Vacuum Braze / Mechanical Arbor |
Key technological advancements, regulatory compliance imperatives, and supply chain shifts redefining industrial core drilling procurement.
Global health authorities (including OSHA in the United States and EU-OSHA in Europe) have instituted stringent workplace regulations governing Respirable Crystalline Silica (RCS) dust generated during masonry and concrete drilling. As a result, global demand is shifting rapidly toward wet coring bits with integrated water slurry systems, as well as dry-coring bits paired with specialized dust extraction shrouds. Leading Chinese suppliers are engineering core barrels with optimized internal water channels that simultaneously cool diamond segments and flush out abrasive cuttings, preventing dust inhalation and extending tool life.
Traditional segmented core bits rely on discrete tooth-like segments welded around the barrel rim. While effective, segment detachment remains a hazard when striking heavy rebar. The industry is seeing rapid adoption of vacuum-brazed monolithic core bits (such as thin-kerf diamond holesaws and single-matrix core drills). By bonding a continuous layer of diamond crystals to the entire circumference, vacuum-brazed tools eliminate the risk of segment loss, offer immediate bite without initial segment sharpening, and reduce machine operator fatigue.
Due to ESG mandates and raw material price volatility, leading manufacturers are reducing reliance on pure Cobalt powders in segment matrixes. Sustainable core bit production leverages advanced pre-alloyed iron-copper-nickel metal powders engineered through eco-sintering techniques. These green metallurgy formulations maintain identical mechanical retention and abrasion resistance while reducing environmental impact and stabilizing wholesale procurement costs for global buyers.
Industrial buyers, hire fleets, and hardware distributors are streamlining their supply chains by partnering directly with verified OEM suppliers in China. Direct OEM partnerships enable custom segment formulations tailored to regional aggregate hardness (e.g., European basalt vs. North American river gravel), private-label laser etching, custom thread configurations (1-1/4" UNC, 1/2" BSP, SDS-Max adapters), and shortened production cycles.
Combining world-class ISO certified facilities, rigorous oSa safety compliance, and deep metallurgical engineering expertise.
Fully audited management systems governing quality assurance, environmental sustainability, occupational safety, and secure digital transaction handling.
All diamond core bits are manufactured in audited facilities adhering strictly to EN 13236 safety standards, guaranteeing segment torque stress safety and burst protection.
From custom core bit diameters (Ø10mm to Ø450mm) to customized segment heights (10mm to 15mm) and specialized thread couplings to fit any handheld or rig core drill.
Direct, authoritative answers to critical technical and logistical questions asked by global distributors and procurement directors.
Partner directly with China's leading certified diamond core bit manufacturer. Contact our application engineering team today for technical datasheets, custom segment bond formulation, sample testing, and bulk export pricing.
